Automated Transportation System

Automated transporter system for P. T. Line :
Function :
This is the main operational / Production equipment for loading and unloading jobs into various tanks in the chemical process, with a programmed cycle. It is effective replacement to traditional hoist with touch of automation. The cycle is based on timings required in particular tank, as specified, and also sequenced in such a way that critical tanks (degrease, de-rust, zinc phosphate and WDO) are treated on priority, so jobs will be removed from these tanks with minimal time loss (to avoid damage to job).

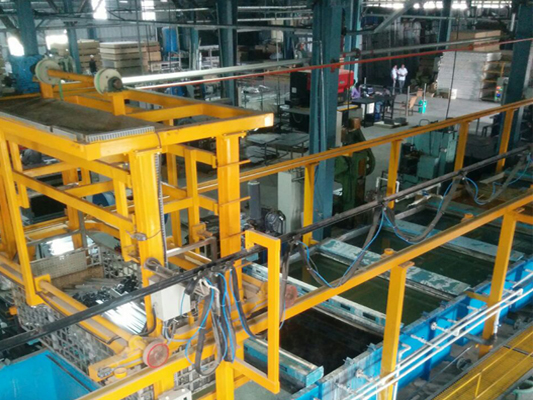

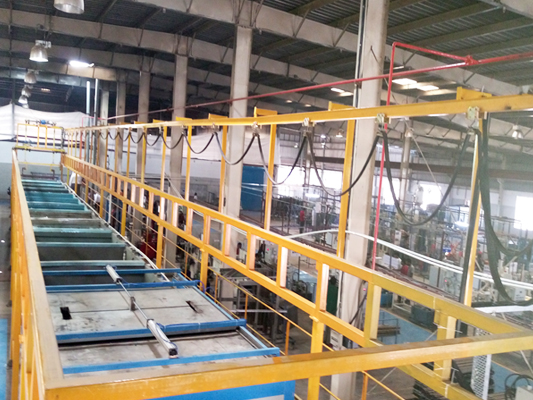

To achieve this there an overhead motorized wagon, mounted on wheels which can travel across all tanks & load / unload stands.

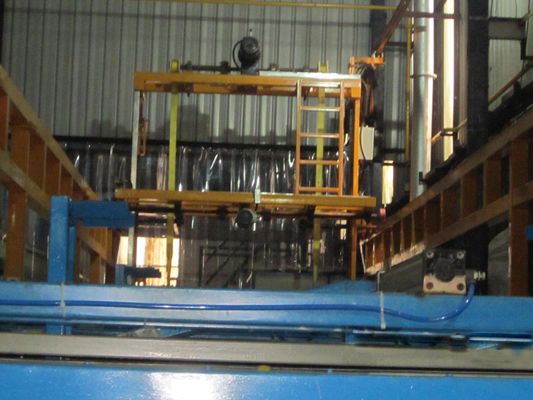

Further this wagon has an up / down arrangement, also motorized, for lifting & lowering jobs into tanks.
The machine also has flight bar which can carry the loaded basket
The main areas of application are :

  • Pretreatment
  • Cathode Electro Deposition (CED)
  • Plating and Anodizing
  • Copper Deposition
  • Lubrication / Oiling

Components handled by our transporter systems include chassis, Frames, Wheels, Sheet Metal Parts, Tubes, PCBs, Enclosures, Load body, etc. Some examples of the systems we have engineered are :
  • Span up to 4m
  • Job Weight up to 2 tons
